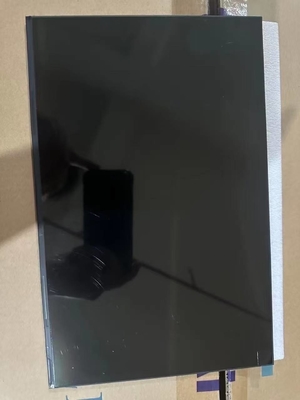

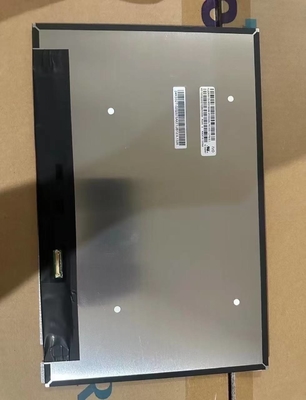

IVO 13.3inch lcd model M133NW4J R3 1920*1200Pixels 30PIN 170PPI laptop lcd panel

The M133NW4J R3 is a 13.3 inch diagonal a-Si TFT-LCD display panel product from InfoVision Optoelectronics Kunshan Co., Ltd. (hereafter called IVO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.4. Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q2, 2020, Now this model is in production. We inputted this model's specification on Feb 11 2022 for the first time, and the latest update on Sep 4 2024. If you want to embed M133NW4J R3 LCM in your future product, Einklcd strongly recommend that you should contact with IVO or it's agent to learn lateast production and specification detail. The M133NW4J R3 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:IVO

Model P/N:M133NW4J R3
Diagonal Size:13.3"

Panel Type:a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1200, WUXGA 170PPI Pixel

Format :RGB Vertical Stripe
Active Area 286.08(W)×178.8(H) mm

Bezel Opening-
Outline(mm): 291.08 × 187.9 × 4.5 (H×V×D)

Treatment Antiglare
Luminance 300 cd/m² (Typ.)

Contrast Ratio: 1200 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response 30 (Typ.)(Tr+Td) ms
Good View at Symmetry

Work Mode IPS, Normally Black, Transmissive
Color Depth16.7M 100% sRGB

BacklightWLED , 15K hours , With LED Driver
Outline Shape Slim (PCBA Bent, T≤3.0mm)Used forLaptop
Refresh Rate60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch screen: Without
Signal Type: eDP (2 Lanes) , 30 pins Connector
Voltage Supply: 3.3V (Typ.)
Max. Ratings

Storage Temp.: -20 ~ 60 °C

Operating Temp.: 0 ~ 50 °C
