Хорошая цена.  онлайн

Подробная информация о продукции

Домой > продукты >
Медицинская панель LCD
>

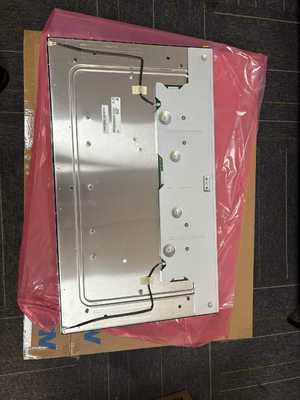

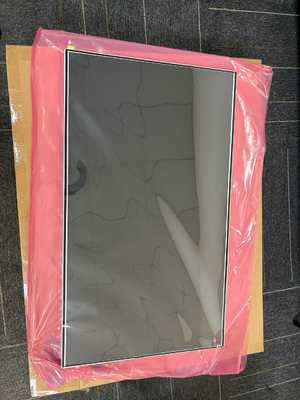

AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin 12V outdoor high brightness

AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin 12V outdoor high brightness

Наименование марки: AUO
Номер модели: Г320ЗАН02.3
МОК: 10 шт.
цена: USD120/PC
Подробная информация об упаковке: Промышленная упаковка
Условия оплаты: T/T, W, Western Union, MoneyGram
Подробная информация
Место происхождения:
Китай
Сертификация:
Rohs,CE,FCC
Качество:
Совершенно новый оригинал
Упаковка:
Оригинальная промышленная упаковка
Материал:
oled стекло
Цвет:
1.06b цвета
Модель:
ИКМ
Стиль:
Широкий экран с высоким разрешением 1024*768PIXELS
Яркость:
850cd
Разъем:
51pin
Контрастность:
1500:1
Рабочее время:
30 тысяч часов
Размер экрана:
32 дюйма
Поставка способности:
3000 шт в неделю
Описание продукта
AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin 12V outdoor high brightness

AU Optronics Corp. (hereafter called AUO) G320ZAN02.3 is a 32.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: DCI-P3, Adobe RGB, sRGB, Hight Brightness, WLED Backlight, With LED Driver, 10 bit, Glossy , 98% DCI-P3, 99 Adobe RGB. Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging, Outdoor High Brightness etc. According to the information stored in einklcd this model mass production on Q2, 2023, Now this model is in production.  We inputted this model's specification on Oct 9 2025 for the first time. If you want to embed G320ZAN02.3 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G320ZAN02.3 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:AUO
Model P/N: G320ZAN02.3
Diagonal Size: 32.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 3840(RGB)×2160, UHD 137PPI
Pixel Format: RGB Vertical Stripe
Active Area 708.48(W)×398.52(H) mm
Bezel Opening 714.48(W)×404.52(H) mm
Outline Size: 727.3(W)×424.5(H) ×20.98(D) mm
Brightness: 850 cd/m² (Typ.)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on Symmetry
Display Colors: 1.07B 98% DCI-P3
Frequency: 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Weight: 4.63Kgs (Typ.)

Surface Glare (Haze 0%)
Contrast Ratio: 1500:1 (Typ.) (TM)
Display Mode :AHVA, Normally Black, Transmissive ,IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Response Time: 10/10 (Typ.)(Tr/Td)
Lamp Type: WLED , 30K hours , With LED Driver
Touch Screen:Without
Application:Industrial Medical Imaging Outdoor High Brightness
Signal Interface eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector
Input Voltage :12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C

AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin  12V outdoor high brightness 0
AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin  12V outdoor high brightness 1
